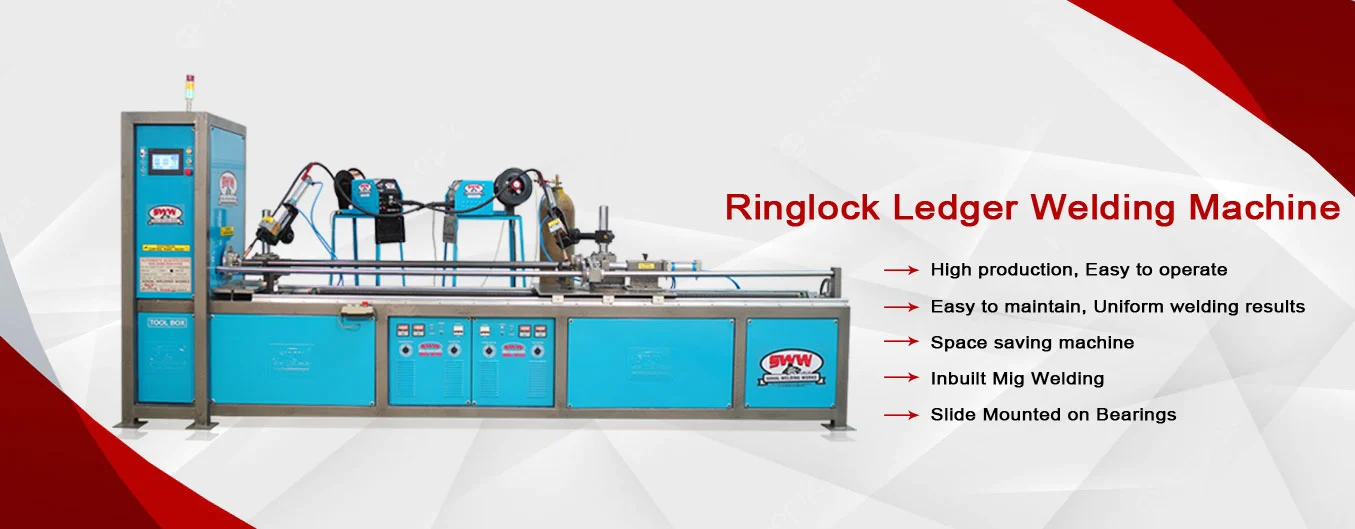

Ringlock Ledger Welding Machine

Features:

High production, Easy to operate, Easy to maintain, Uniform welding results, Inbuilt Mig Welding, Slide Mounted on Bearings, Space saving machine.

Description:

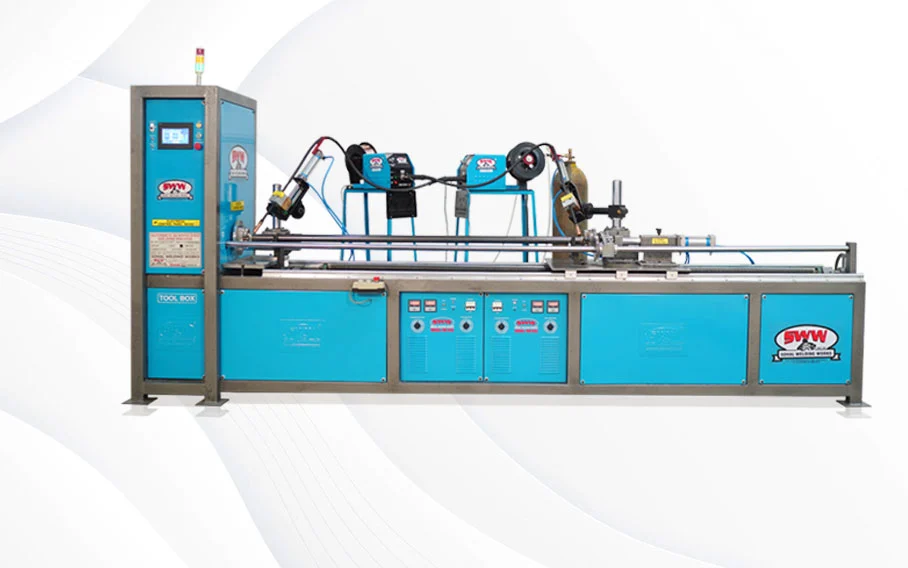

Automatic Ringlock Ledger Welding Machine is a high-precision automated solution designed for welding Ringlock ledger blade to scaffold pipes with exceptional accuracy and consistency. Equipped with advanced servo motor technology, the machine ensures precise positioning, smooth rotation, and synchronized welding, resulting in superior weld quality and higher production efficiency. It is ideal for manufacturers seeking reliable, repeatable, and high-speed scaffolding production.

Sohal Welding Works is a trusted manufacturer and global supplier of high-quality Ringlock Ledger Welding Machine designed for modern scaffolding applications. We specialize in producing durable, precision-engineered scaffolding welding machines that ensure maximum strength, safety, and easy assembly for construction, industrial, infrastructure, and maintenance projects.

Specification:

Drive	Servo Motor With Servo Drive
R.P.M.	2 to 10
Motor	750 Watt
Operation	Pneumatic
Air Pressure Required	4 to 5 Bar
Length Adjustment	500 to 2400mm
Power	1 Phase, 220 Volts ±5%
Required SPM	0.5 K.V.A.
Supply	3 Phase, 415 Volts ±5%
Required Mig Welding	9x2 = 18 K.V.A. Max.
Frequency	50/60 H.Z.
Operating Voltage	24 Volts
Control	PLC with Touch Screen
Production	700-800 Approx.
Dimensions	13.5(L) x 2.8(W) x 6(H) Feet Approx.
Weight	1100 Kgs.(Approx.)
